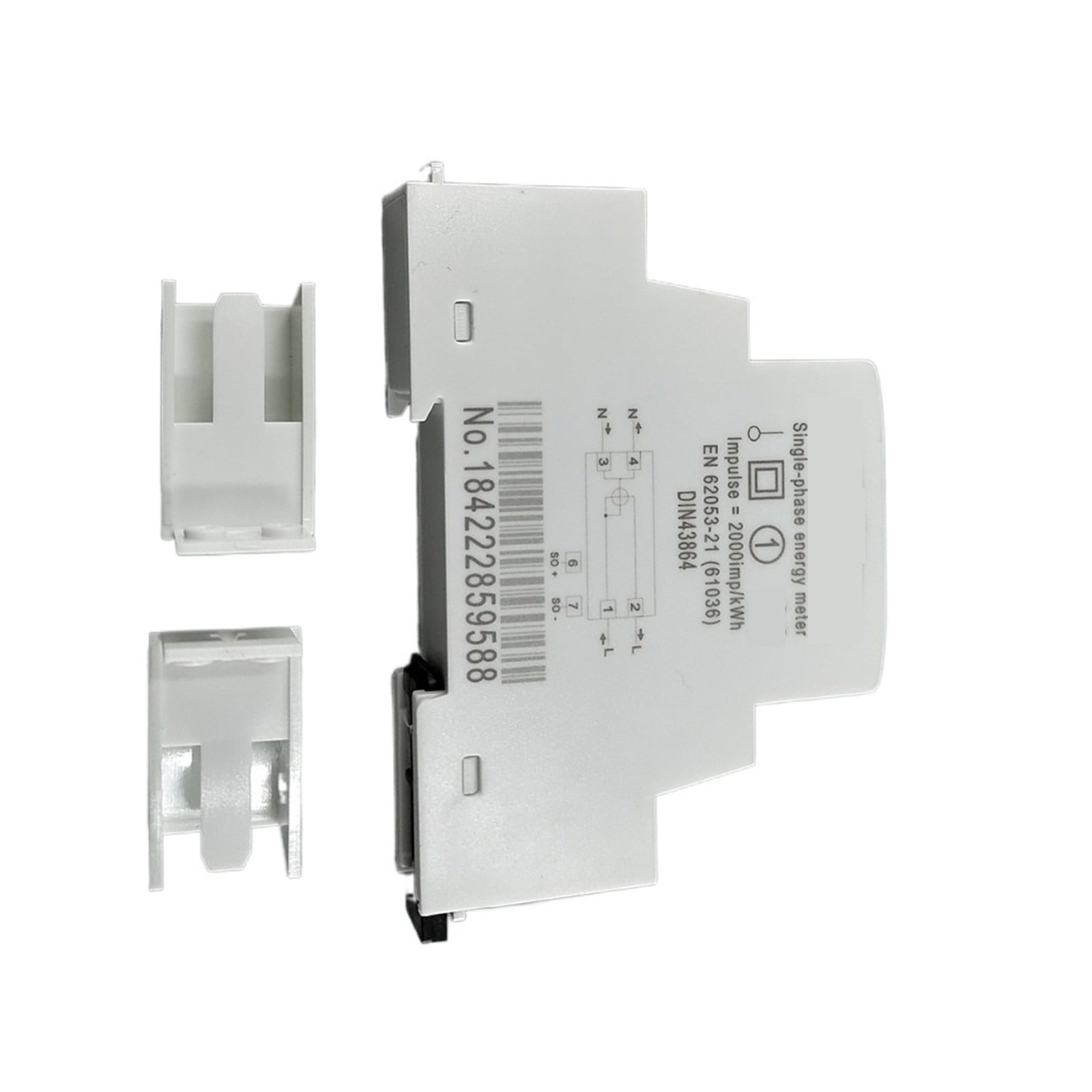

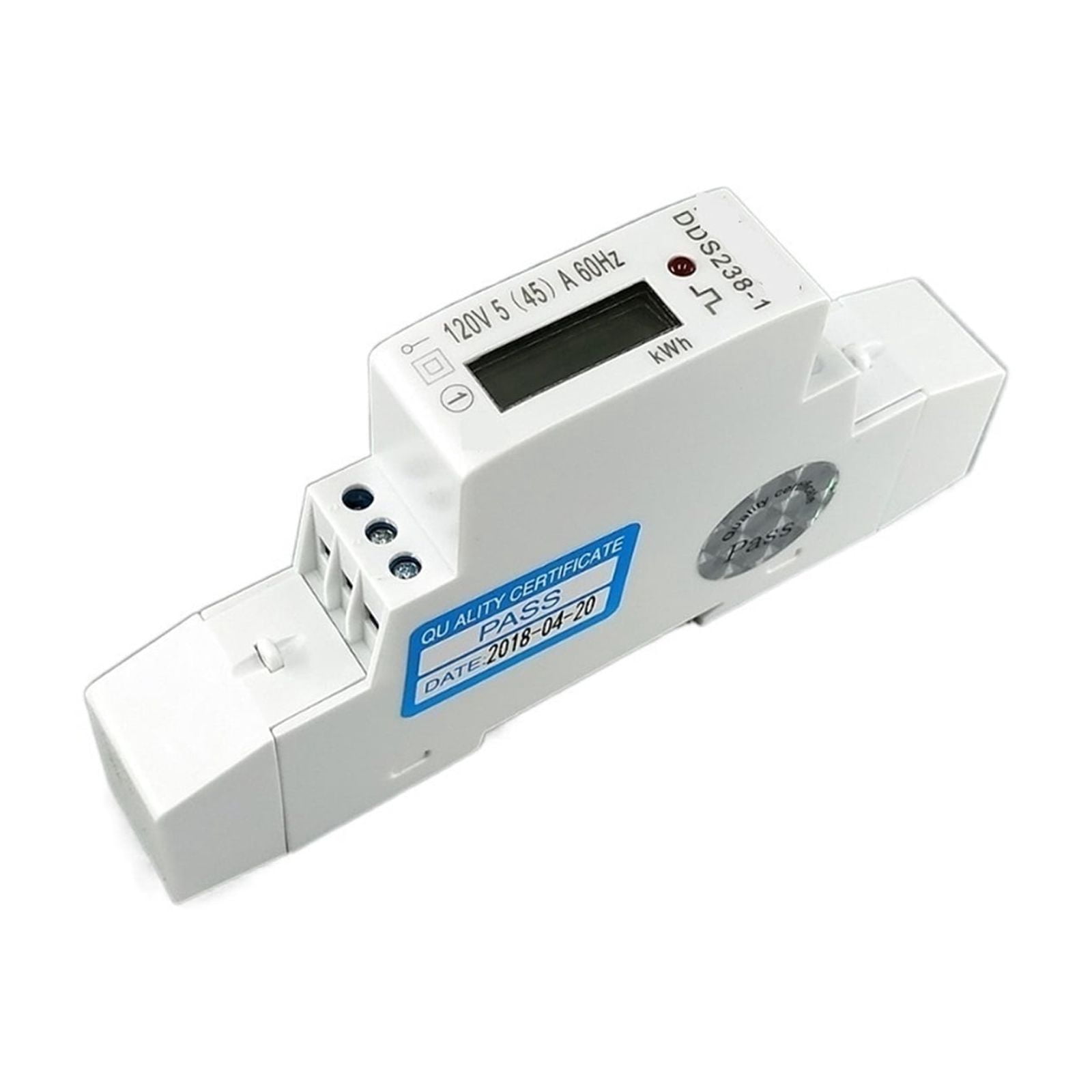

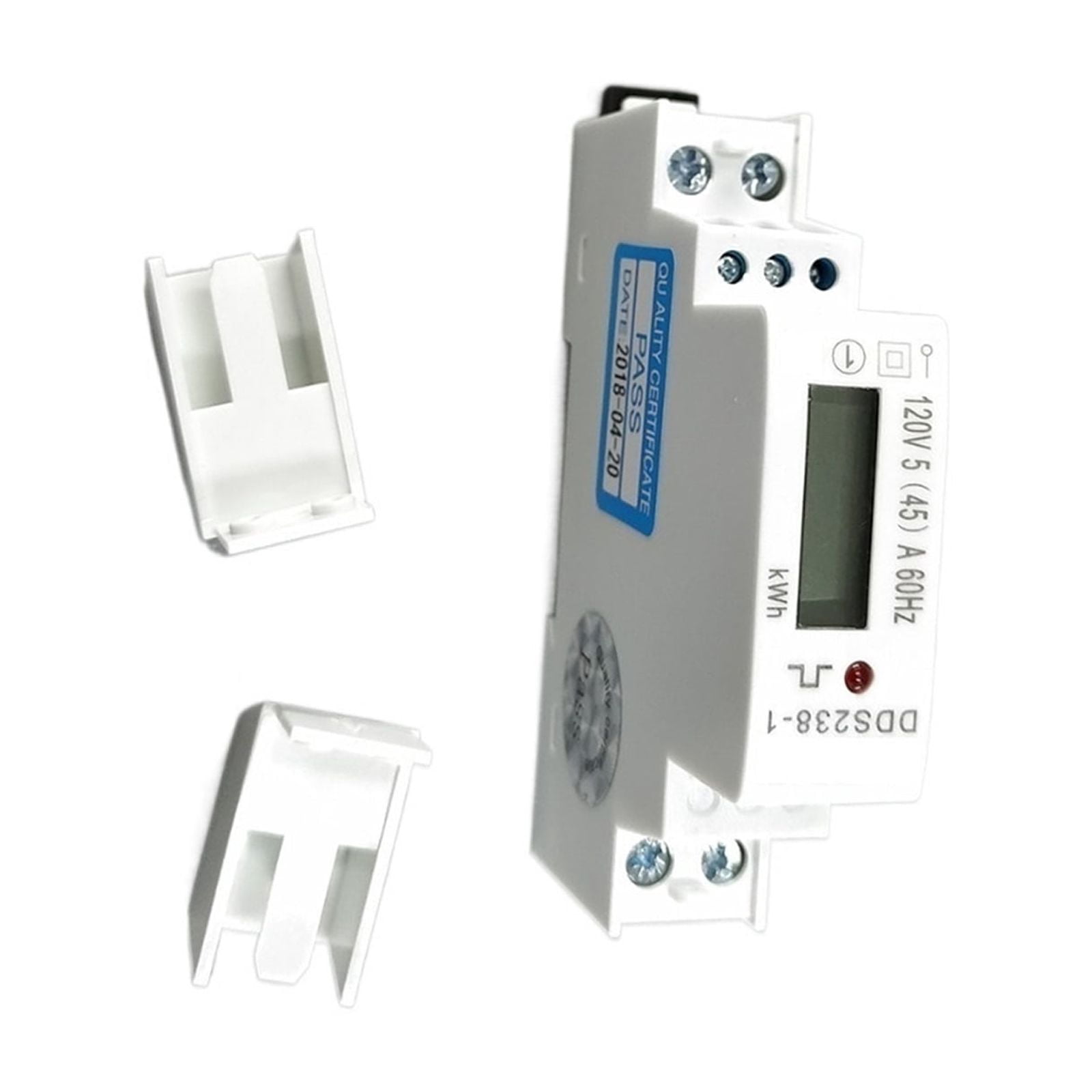

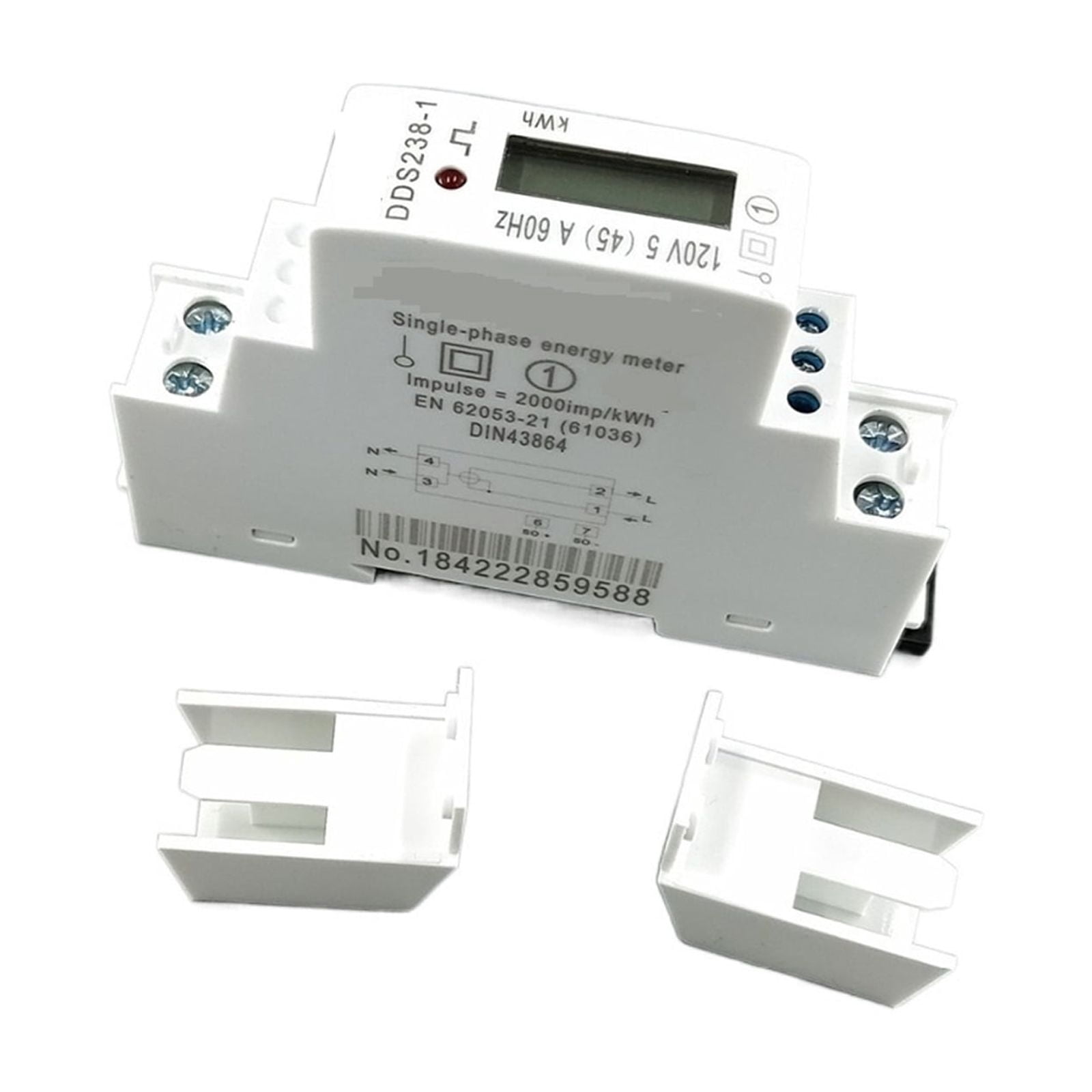

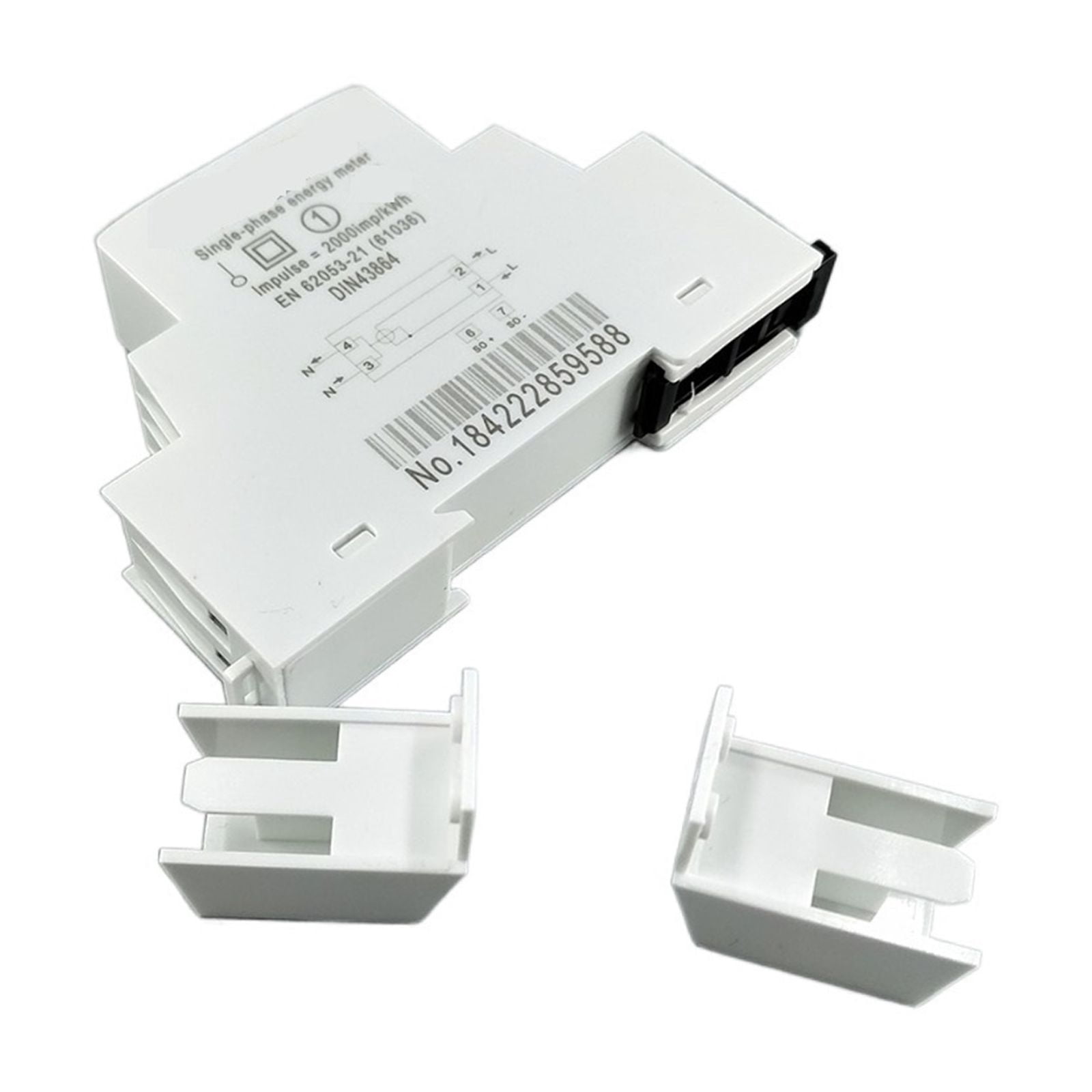

105(45)A 45A Single Phase Din Rail KWH Watt Hour Din-rail Energy Meter LCD Monitor KWh Meter Wattmeter Power Consumption Monitor ,Overload Protection

<p>Insulation capabilities: </p><p>- AC voltage withstand 2KV for 1 minute </p><p>- Impulse voltage withstand 6KV - 1.2µS waveform </p><p>Basic current (Ib) 5 A </p><p>Maximum rated current (Imax) 45 A </p><p>Operational current range 0.25A - 45A </p><p>Over current withstand 960A for 0.01s </p><p></p><p>Internal power consumption 1W / 10VA </p><p>Test output flash rate (RED LED) 2000 impulses per kWh (0.5Wh/imp) </p><p>Pulse output rate (pins 20 &amp; 21 2000 pulses per kWh 05Whimp </p><p>Power supply indicator Green LED) Meter is connected and working OK </p><p>Consumption indicator (RED LED) Flashing at load running </p><p>Data display mode 6+1 digits for LCD display </p><p></p><p>2 Performance criteria: </p><p>Operating humidity 75% </p><p>Storage humidity 95% </p><p>Operating temperature -10°C - +50°C </p><p>Storage temperature -30°C - +70°C </p><p></p><p>3 Basic errors: </p><p>0.05Ib Cos = 1 ±1.5% </p><p>0.1Ib Cos = 0.5L ±1.5% </p><p>Cos = 0.8C ±1.5% </p><p>0.1Ib - Imax Cos = 1 ±1.0% </p><p>0.2Ib - Imax Cos = 0.5L ±1.0% </p><p>Cos = 0.8C ±1.0%</p><p>Related Products:home energy monitor,energy monitor,smart home energy monitor,home power monitor,home energy monitoring system,electricity usage monitor smart,whole home energy monitor,electricity monitor,energy monitoring system,smart energy monitor,sense energy monitor,power monitor,energy monitoring,energy meter,whole house power monitor,power consumption monitor,power usage monitor</p>

• Precision / low power / consumption / long life
• Compared with the traditional meter, this product looks small and beautiful, light weight, easy to install!
• The data is clear, at a glance
• Simple design, easy installation and easy operation
• safer and helps to save energy in residential, office, commercial and industrial buildings
