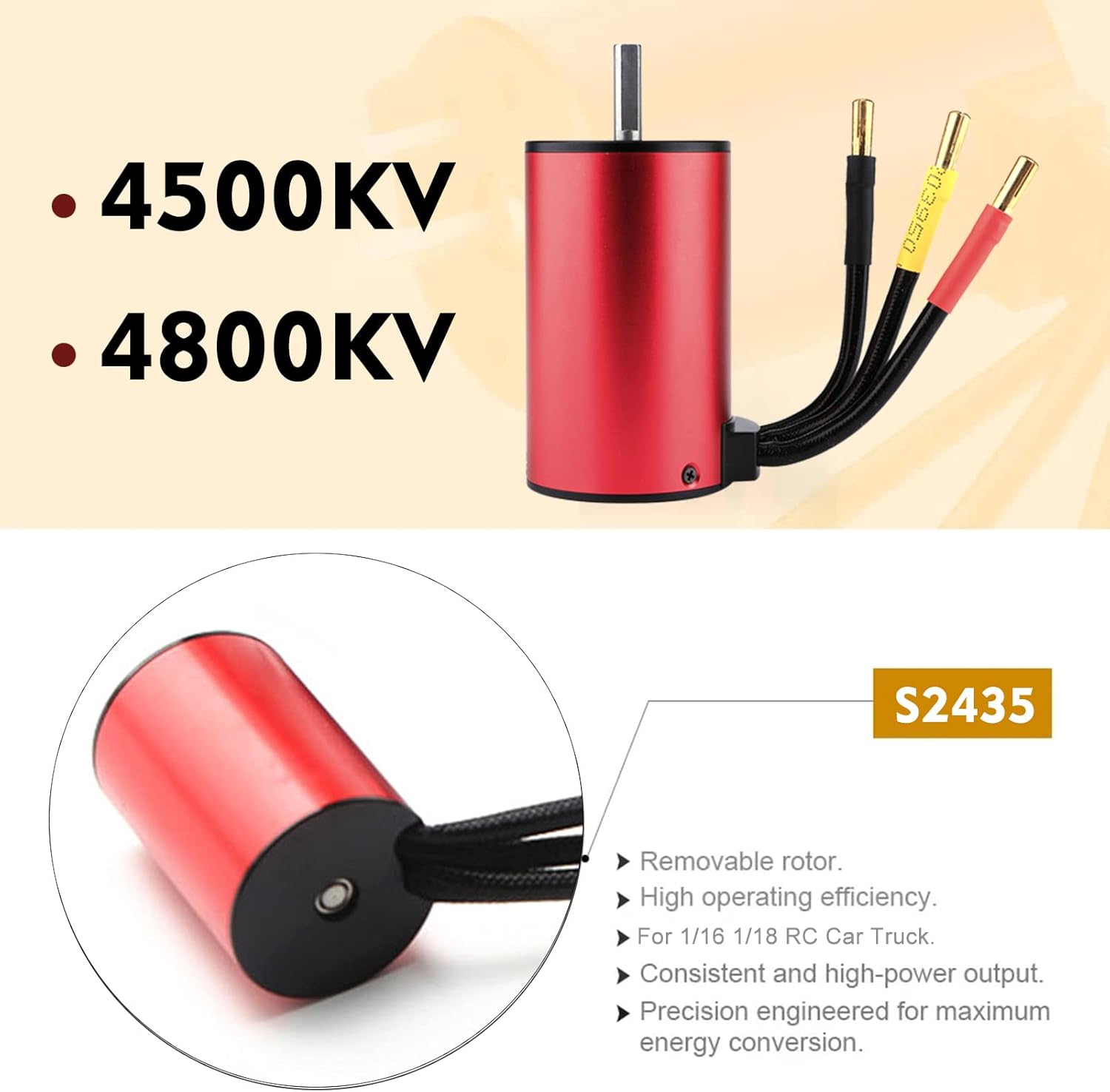

GoolRC S2435 4800KV Brushless Motor 4P Sensorless 25A Brushless ESC Electric Speed Controller for 1/16 1/18 RC Car Truck Car Motor
Product details
| Management number | 216430840 | Release Date | 2026/04/19 | List Price | US$14.80 | Model Number | 216430840 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Specifications: Name: 2435 RC Motor Color: Red KV(RPM/Volt): 4800KV Watt: 300 Max RPM: 60000 Max Voltage: <13.2V Max Amps: 22A Rotor Poles: 4 Diameter: 24mm Length: 34mm Shaft: 2.0mm Shaft Length: 12mm Connector: 3.5mm Gold Weight: 59g 25A ESC: Cont. Current: 25A Burst Current: 90A/10sec Battery: 2 Cell Lipo / 4-6 Cell NiMh BEC: Yes BEC Output: 5V/1A Power Supply Plugs: T Male Motor Plugs: Female 3.5mm Connector Size: 40*27*15mm Weight: 29g Package Information: Package Size: 9* 6*3.5cm Package Weight: 113g General Box Package Packing List: 1* 4800KV Brushless Motor 1* 25A ESC
- 4 Pole 12 Slot Hi-torque Motor Design.
- High Quality: CNC Machined 6061 T6 Billet Aluminum Heatsink Can, High Purity Copper Windings Maximizes Efficiency, High RPM ABEC5 Oversized Bearings.
- Universal fit, for 1:16, 1:18 2S RC racing car.
- Precision balanced rotor,smoothness for best reliability and maximum RPM.
- Stator - Super Thin (0.35mm) Laminations.
| Model | GAN2447388808362SS |
|---|---|
| Speed | 60000 RPM |
| Voltage | 5 Volts |
| Brand Name | GoolRC |
| Horsepower | 300 Watts |
| Item Weight | 29 Grams |
| Manufacturer | GoolRC |
| Material Type | Aluminum |
| Shaft Diameter | 0.94 Inches |
| Item Dimensions W x H | 0.9"W x 0.9"H |
